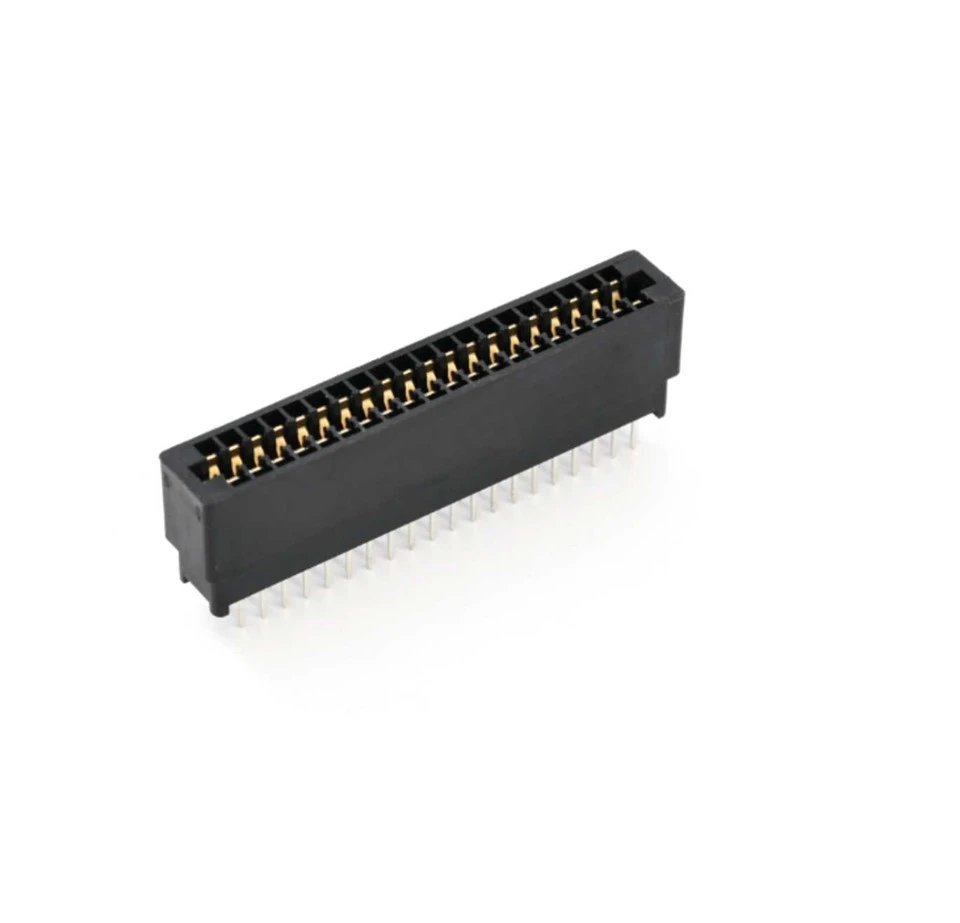

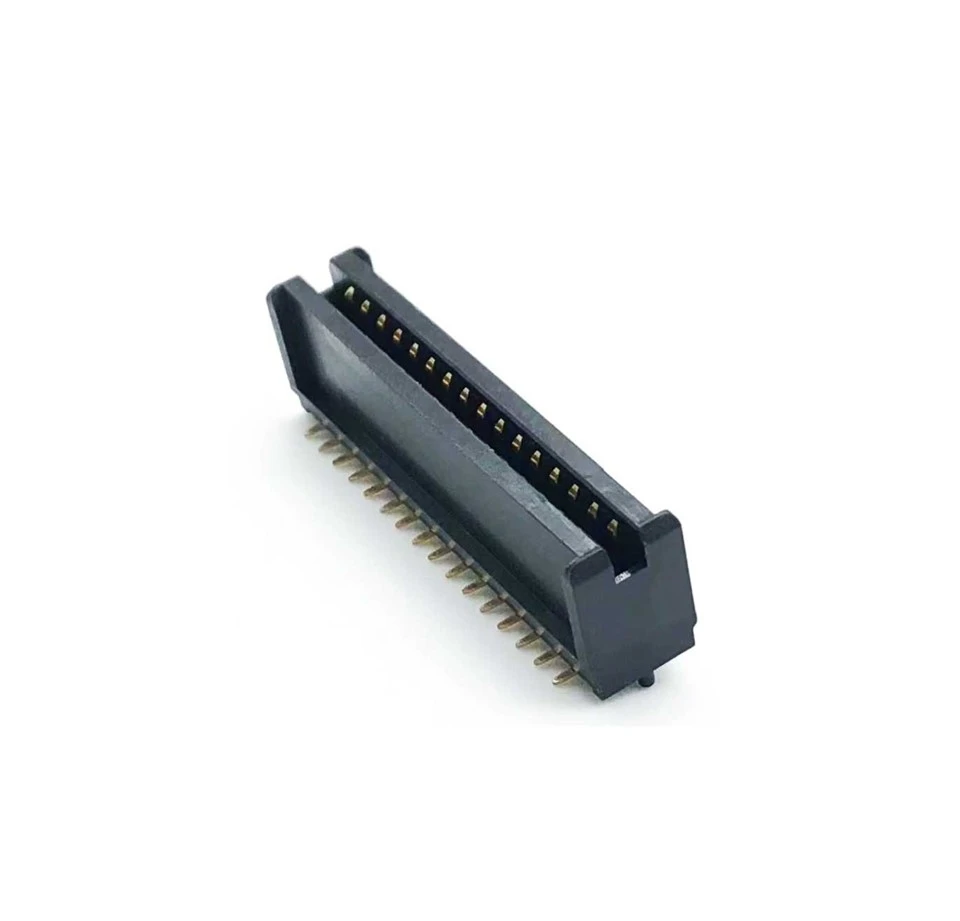

2.54mm Card Edge Connector

Nco tseg:Muaj nrog ntau yam kev xaiv mounting, daim npav qhia, thiab cov yuam sij polarization. Kev cai tiv tauj txoj haujlwm thiab tshwj xeeb plating muaj.

1. Kev lag luam-Standard 2.54mm Pitch rau siab tshaj plaws Compatibility
Features dav siv 2.54mm (0.1 nti) suab - ncaj qha ncaj qha rau feem ntau breadboards, kev loj hlob boards, thiab legacy PCB tsim. Muaj nyob rau hauv ib qho lossis ob kab teeb tsa uas txhawb nqa 6 rau 86 txoj haujlwm tiv tauj kom tsim tau qhov yooj yim tshaj plaws.

2. Kev ntsuas tam sim no siab txog 5A ib qho kev sib cuag
Rated los ntawm 3A txog 5A ib qho kev sib cuag nrog 250V AC / DC - xa cov peev txheej tshwj xeeb rau 2.54mm pitch connector. Kev tiv thaiv tsawg dua lossis sib npaug ntawm 15 mΩ thiab rwb thaiv tsev tiv thaiv Ntau dua lossis sib npaug ntawm 5000 MΩ kom ntseeg tau tias cov hluav taws xob zoo tshaj plaws rau kev xav tau lub zog thiab cov teeb liab siv.

3. Cov khoom siv hwm zoo nrog kub / Tin Plating
Phosphor bronze los yog beryllium tooj liab hu muab kev ua tau zoo heev thiab kev siv tshuab ua haujlwm ntev. Kub los yog tin plating tshaj npib tsib xee (0.1-0.8μm) ua kom muaj kev tiv thaiv corrosion thiab txhim khu kev qha teeb liab kev ntseeg siab tshaj kev pab cuam lub neej ntev.

4. Ntau yam Mounting Styles rau txhua qhov txheej txheem sib dhos
Muaj nyob rau hauv solder eyelet, solder dip, los yog xaim qhwv mounting styles - haum rau ntau yam kev txiav txim yuav tsum tau los ntawm PCB soldering rau backplane hlau wrapping. Zoo meej rau kev tswj hwm kev lag luam, cov khoom siv sib txuas lus, kev sim kho, thiab kev hloov kho qub txeeg qub teg.

• Hu rau txoj haujlwm: Standard los ntawm 6 mus rau 86 hu, kev cai suav muaj
• Kab Configurations: Ib kab, dual kab, los yog staggered kev npaj
• Daim npav ThicknessStandard: 1.6mm, yeem 0.8mm, 1.2mm, 2.4mm, los yog kev cai
• Tiv tauj plating: Kub flash (0.1μm), xaiv kub (0.3-0.8μm), tag nrho kub (1μm+), lossis ci tin
• Mounting Styles: Solder eyelet, solder dip, wire wrap, or right -angle
• Hom kev txiav tawm: Txheem lub khob khob, PCB mount, los yog txuas ntxiv tails rau hlau wrapping
• Mounting Kho vajtse: Threaded inserts, mounting pob ntseg, daim ntawv qhia, los yog ejector mechanisms
• Hu rau Tsim: Bifurcated (dual{0}}beam) rau kev sib cuag rov qab, lossis ib zaug -beam rau kev ua kom zoo dua tus nqi
• Kev xaiv polarization: Cov qhov tseem ceeb, cov neeg uas ploj lawm, lossis cov yuam sij polarization kev cai
• Khoom siv tsev: Txheem phenolic, iav - puv polyester, los yog siab - kub thermoplastics
• Xim Coding: Ntsuab (tus qauv), xim dub, xim av, lossis xim kev cai

Standard Pitch Card Edge Solutions rau ntau daim ntawv thov

• Industrial Control Systems: Siv nyob rau hauv PLC modules, lub cev muaj zog tsav, thiab muaj I/O phaib qhov twg 2.54mm suab muab kev ntseeg siab, siab -tam sim no kev sib txuas rau kev tswj cov teeb liab thiab hluav taws xob faib nyob rau hauv Hoobkas automation ib puag ncig.
• Cov khoom siv ntsuas & ntsuas: Deployed nyob rau hauv modular xeem ntsuas, cov ntaub ntawv loggers, thiab lub rooj ntev zaum saum cov khoom uas interchangeable muaj nuj nqi phaib yuav tsum robust, repeatable sib txuas rau qhov tseeb ntsuas thiab ntev ntsuas lub neej.
• Legacy Bus Systems: Qhov tseem ceeb rau ISA, PC/104, thiab lwm yam kev tsheb npav qub qub tseem siv tau rau hauv kev lag luam thiab kev siv tub rog, muab rov qab sib raug zoo nrog cov cuab yeej pov thawj.
• Kev Kawm & Kev cob qhia Platforms: Kev koom ua ke rau hauv cov kws qhia kev kawm, cov qauv tsim qauv, thiab cov cuab yeej siv hauv tsev kawm qib siab uas cov qauv suab sib haum nrog breadboard-cov qauv tsim tau zoo rau cov tub ntxhais kawm kev kawm.
• Kev cai Interface Boards: Siv nyob rau hauv daim npav adapter, riser boards, thiab kev cai interface tsim uas yuav tsum tau txhim khu kev qha ntug kev sib txuas nrog proven mechanical stability thiab straightforward PCB layout.
• Backplane & Motherboard Systems: Muab tso rau hauv daim npav-kab tshuab, khib- khoom siv, thiab kev sib txuas lus chassis qhov twg ntau daim npav txuas mus rau lub dav hlau rov qab rau cov qauv tsim qauv.

1.Michael Chen, Tus Kws Lij Choj Tswj, Hoobkas Automation
"Standardized ntawm 2.54mm daim npav ntug connectors rau tag nrho peb cov PLC I / O modules. Cov neeg sib tham bifurcated xyuas kom ntseeg tau kev sib txuas txawm tias nyob rau hauv kev co, thiab 5A tam sim no ntsuam xyuas peb cov kev lag luam sensor loads yam tsis muaj teeb meem."

2.Sarah Wang, Tus tsim khoom siv kuaj, ntsuas kev daws teeb meem
"Siv rau cov ntawv sib hloov pauv tau hauv peb lub rooj zaum saum toj kawg nkaus analyzers. Cov kev tsim kho muaj zog tiv taus ntau pua daim npav sib pauv, thiab cov kub -plated tiv thaiv tsis tshua muaj zog rau kev ntsuas raug."

3.Robert Zhang, Industrial Systems Integrator, Cov cuab yeej cuab tam
"Qhov tseem ceeb rau kev tswj hwm cov cuab yeej cuab tam PC/104 hauv peb cov kab tsim khoom. Cov khoom sib txuas no muab kev tso siab tau poob- hauv kev hloov pauv uas ua rau peb cov khoom siv 20- xyoo ua haujlwm nrog tsis muaj teeb meem sib xws."

4.Lisa Park, Educational Lab Manager, University Engineering
"Zoo meej rau cov tub ntxhais kawm ntawv qhov chaw nres tsheb. Tus qauv 0.1-nti pitch dlhos zoo kawg nkaus nrog peb cov khoom siv breadboard, thiab cov khoom siv ruaj khov muaj sia nyob tau ntau xyoo ntawm cov tub ntxhais kawm siv yam tsis ua haujlwm."

5.David Liu, Backplane Designer, Telecommunications
"Tshwj xeeb hauv peb cov kev cai backplane tsim rau cov khoom siv hauv xov tooj. Cov khoom siv hluav taws xob siv hluav taws xob muab kev sib txuas ruaj ntseg rau cov xaim-wrap prototyping, thiab dual - kab teeb tsa ua kom daim npav ceev."

• Txoj kev them nyiaj: credit card lossis T / T (yeem rau cov nyiaj ntau). Western Union PayPal
• Kev them nyiaj T / T feem ntau txhawb 100% them ua ntej.
• Lub sij hawm xa tuaj: Feem ntau hauv 5-10 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.
• Txoj cai qauv: Cov qauv ib txwm muaj rau txhua tus qauv rau cov khoom lag luam.
• Cov qauv tuaj yeem npaj tau hauv 3-5 hnub ua haujlwm thaum tau txais cov nyiaj them poob haujlwm.
• Shipping chaw nres nkoj: Shenzhen, Suav teb.

Cim npe nrov: Tuam Tshoj 2.54mm Card edge connector manufacturers, lwm tus neeg, Hoobkas
