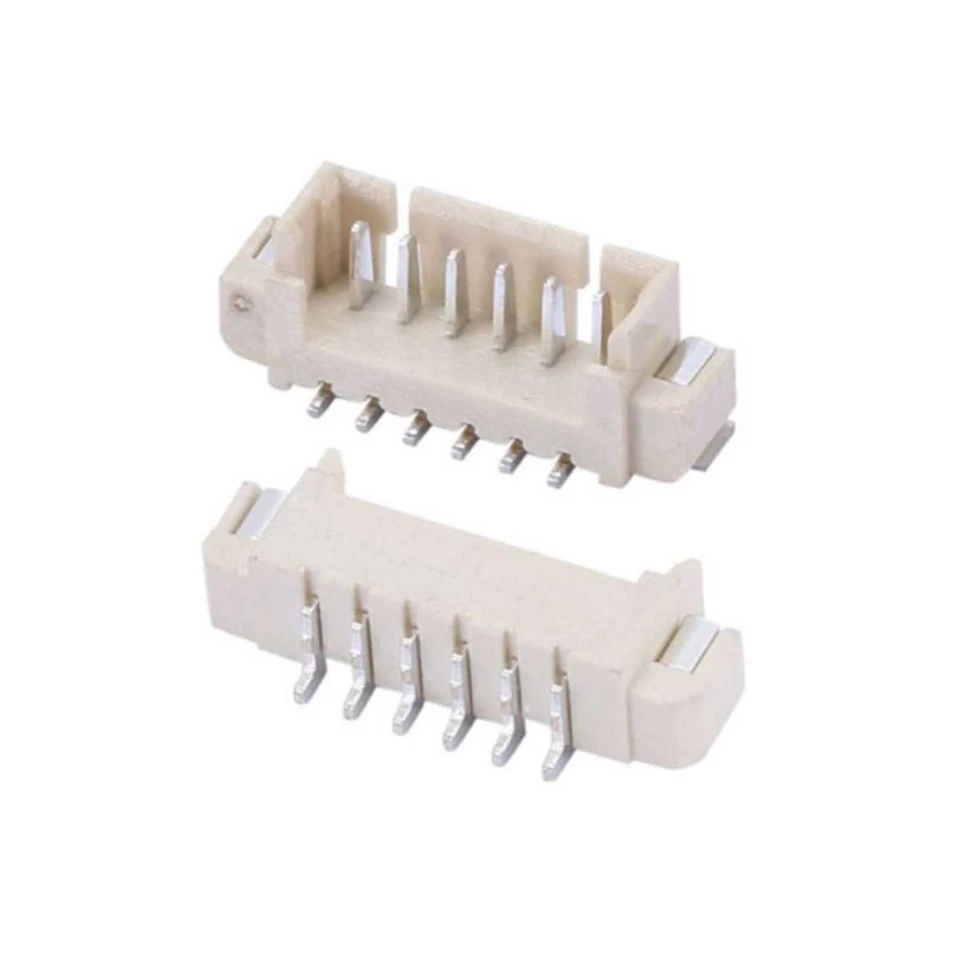

0.8mm Pitch Wafer Connector

Nco tseg:Muaj nyob rau hauv lub tshuab nqus tsev khaws cov chaw rau automated los ua ke. Kev cai tus pin suav thiab plating xaiv muaj.

1. Qhov chaw-Txuag 0.8mm Pitch rau siab -Density Designs
Nrog rau kev sib cog lus 0.8mm suab thiab kev txhawb nqa rau 2 txog 60 txoj haujlwm sib cuag, qhov txuas txuas no ua kom muaj kev sib txuas ceev ntawm qhov chaw - txwv PCBs. Zoo tagnrho rau portable electronics, wearables, thiab compact modules qhov twg txhua millimeter suav.

2. Nto Mount Tsim rau Automated los ua ke
Tsim tshwj xeeb rau saum npoo mount (SMT) sib dhos, cov khoom txuas no tau sib xws nrog siab - nrawm nrawm- thiab - qhov chaw tshuab. Muaj nyob rau hauv ntsug lossis sab xis -angle orientation kom haum rau cov board layouts thiab stacking heights.

3. Txhim khu kev ua tau zoo rau qis -Kev siv fais fab
Txhua qhov kev sib cuag xa tawm 0.5A txog 1.0A nrog qhov ntsuas hluav taws xob ntawm 50V txog 100V AC / DC - zoo kawg nkaus rau cov teeb liab kis tau tus mob hauv cov neeg siv khoom siv hluav taws xob, IoT cov cuab yeej, thiab cov twj paj nruag portable. Tiv tauj tsis kam Tsawg dua los yog sib npaug li 30 mΩ kom ntseeg tau tias muaj teeb meem zoo ib yam.

4. High -Tsub Vaj Tsev nrog UL94V-0 Rating
Moulded los ntawm siab -kub thermoplastic nrog UL94V-0 nplaim taws ntsuas, qhov txuas no tiv taus cov txheej txheem rov ua dua yam tsis muaj deformation. Kev khiav hauj lwm kub ntawm -25℃rau +85℃npog feem ntau hauv tsev thiab kev lag luam daim ntaub ntawv.

• Hu rau txoj haujlwm: Txheem los ntawm 4 mus rau 60 tus pins (txawm tus lej), kev cai suav muaj
• Hom Connector: Wafer socket (poj niam), wafer header (txiv neej), xaim -rau-board, board-rau-board
• Kev taw qhia: Vertical (ncaj), txoj cai -lub kaum sab xis (90 degree), lossis rov qab teeb tsa
• Tiv tauj plating: Kub flash (0.1μm), xaiv kub (0.3μm), lossis tin hla nickel
• Mounting nta: Standard SMT tabs, txhawb nqa tuav -downs, los yog ntxiv mounting ncej
• Polarization: Asymmetric vaj tse, keying slots, los yog xim -coded versions
• Xauv Mechanisms: Kev sib txhuam xauv, latch xauv, lossis detent mechanisms
• Tshwj xeeb nta: Xaiv-thiab- qhov chaw lub tshuab nqus tsev, embossed daim kab xev alignment, los yog alignment pins
• Xim Coding: Ntuj (tus qauv), xim dub, dawb, lossis xim kev cai

Ultra-Compact Connectivity rau Miniaturized Electronic Systems

• Consumer Electronics & Wearables: Siv nyob rau hauv smartphones, ntsiav tshuaj, smartwatches, wireless earbuds, thiab qoj trackers qhov twg ultra-fine pitch connectors enables internal board- rau -board kev twb kev txuas nyob rau hauv nce nyias thiab compact ntaus ntawv tsim.
• Portable Medical Devices: Kev koom ua ke rau hauv cov cuab yeej kuaj mob, ntsuas cov piam thaj tas li, cov neeg saib xyuas cov neeg mob nqa tau, thiab cov khoom siv kho mob uas xav tau kev sib raug zoo, me me uas tswj kev ua haujlwm hauv chaw kho mob thiab tsev kho mob ib puag ncig.
• IoT Sensors & Modules: Deployed nyob rau hauv compact IoT nodes, wireless sensors, asset trackers, thiab smart home devices where PCB space is at a premium and trustworthy connections are important for 24/7 operation.
• Laptop & Tablet Computers: Siv nyob rau hauv kev sib txuas lus sab hauv, lub koob yees duab modules, roj teeb interfaces, thiab kev sib txuas ntawm tus ntxhais nyob qhov twg 0.8 hli suab enables slim daim ntawv yam tseem ceeb thaum tswj cov teeb liab kev ncaj ncees.
• Lub koob yees duab Modules & Imaging Systems: Siv rau hauv lub koob yees duab kev ruaj ntseg, lub koob yees duab ua haujlwm, drone imaging payloads, thiab tshuab lub zeem muag xav tau kev sib txuas, txhim khu kev qha rau siab - daws teeb meem duab sensors thiab cov rooj tsav xwm ua haujlwm.
• Industrial Handheld Devices: Deployed nyob rau hauv barcode scanners, inventory terminals, field service tools, thiab portable test equipment where space constraints demand me me connectors with robust performance.

1.Michael Chen, Tus tsim khoom tsim, Wearable Electronics
"Cov 0.8mm pitch wafer connectors enabled peb tom ntej no - tiam smartwatch tsim. Lub ultra-ko taw hneev taw tau txuag PCB qhov chaw tseem ceeb, thiab SMT configuration nrog lub tshuab nqus tsev tuaj yeem ua rau peb cov txheej txheem sib dhos automated."

2.Robert Zhang, IoT Hardware Developer, Smart Home Solutions
"Siv nyob rau hauv peb cov compact wireless sensor nodes. Lub 0.8mm suab tso cai rau peb ntim ntau yam interfaces rau hauv 30mm PCB, thiab txoj cai -lub kaum sab xis version enables low-profile kev sib txuas hauv slim enclosures."

3.Lisa Park, Yees Duab Systems Engineer, Drone Imaging
"Qhov tseem ceeb rau peb lub koob yees duab drone gimbals qhov chaw tsis tshua muaj kev txwv. Lub 0.8mm connectors muab kev sib txuas txhim khu kev qha rau cov duab sensors thaum tiv thaiv kev vibration thiab kub hloov pauv ntawm kev ua haujlwm davhlau."

4.David Liu, Consumer Electronics Designer, Mobile Devices
"Standardized ntawm cov connectors rau sab hauv boards - rau - board kev sib txuas hauv peb cov ntsiav tshuaj. Cov ntaub nplaum thiab reel ntim txhawb siab - ntim ntau lawm, thiab qhov zoo ib yam tau tshem tawm kev sib dhos- cuam tshuam txog kev ua tsis tiav."

• Txoj kev them nyiaj: credit card lossis T / T (yeem rau cov nyiaj ntau). Western Union PayPal
• Kev them nyiaj T / T feem ntau txhawb 100% them ua ntej.
• Lub sij hawm xa tuaj: Feem ntau hauv 5-10 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.
• Txoj cai qauv: Cov qauv ib txwm muaj rau txhua tus qauv rau cov khoom lag luam.
• Cov qauv tuaj yeem npaj tau hauv 3-5 hnub ua haujlwm thaum tau txais cov nyiaj them poob haujlwm.
• Shipping chaw nres nkoj: Shenzhen, Suav teb.
